Product Expertise

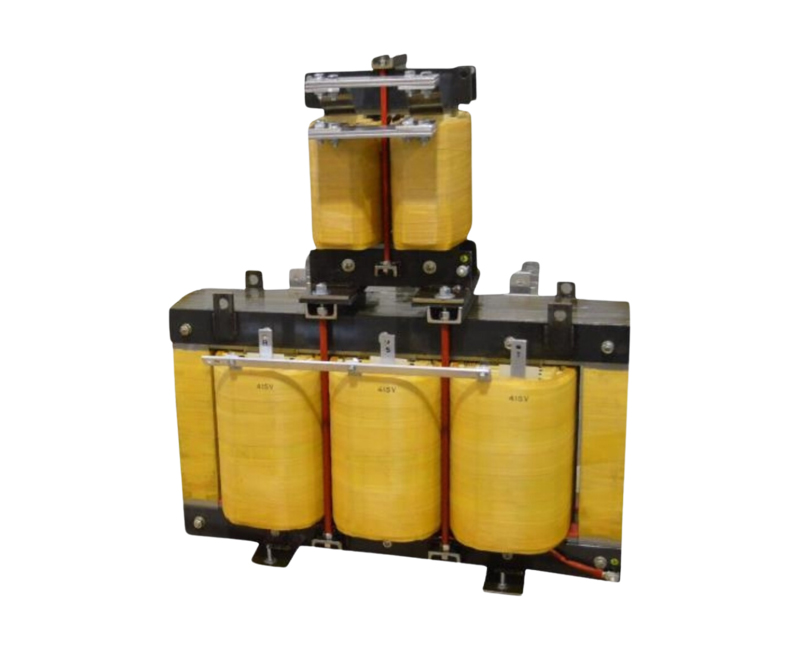

LV-LV Transformers and Inductors

Product Features:

  • From 100 kVA up to 3 MVA
  • 50 to 500 Hz, current up to 10kA
  • IP00 up to 65

Core Competences:

  • 6 Pulse Rectifier Transformer
  • 12 Pulse Rectifier Transformer (and its multi)
  • Inverter Output Transformer
  • Isolation Transformer (Step-up/down – Reversible)
  • Transformer Three Phases (Input) – Single Phase (Output)
  • Auto transformers

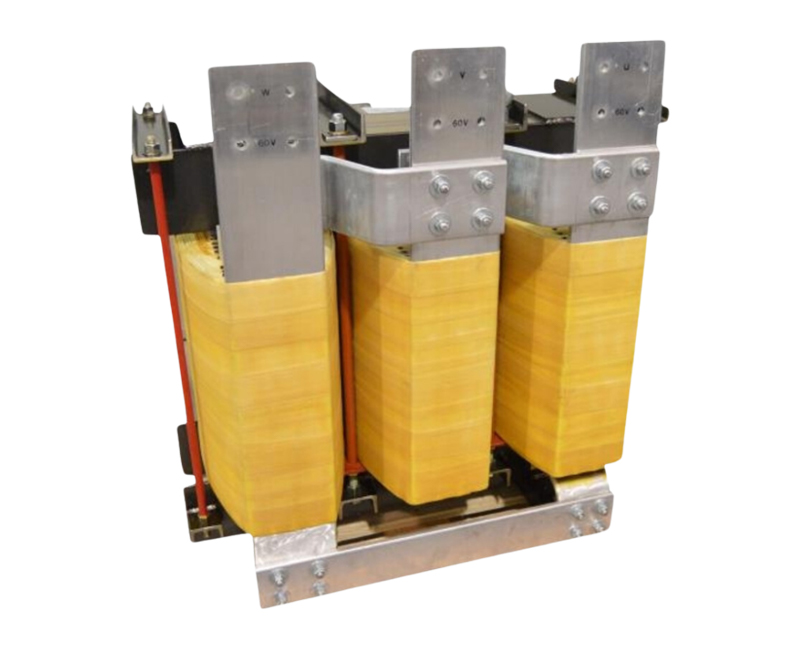

  • AC Choke for 3 Phases Systems
  • DC Chokes (Smoothing Simmetry)
  • Boost Trafo for Stabilizer

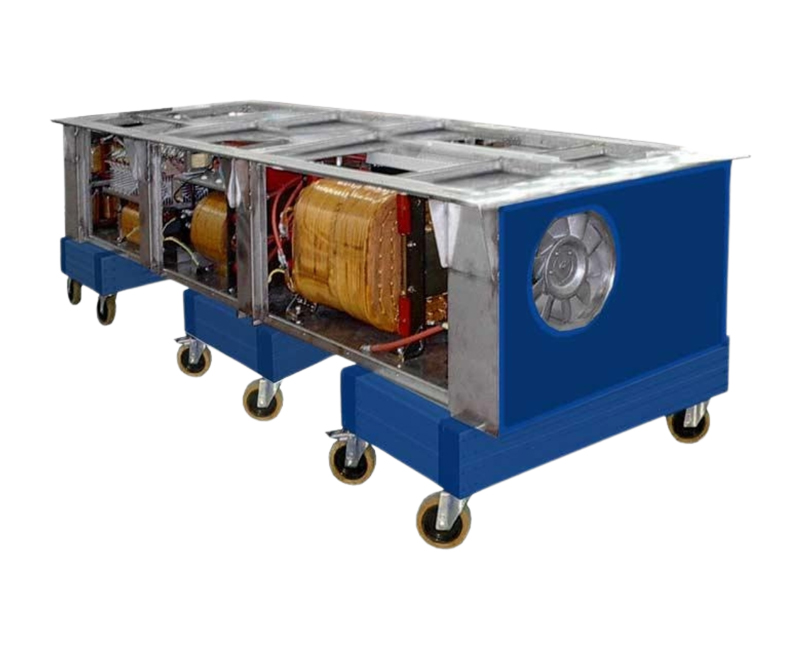

  • AC/DC Chokes for inverter and reactive load banks

HV-MV, MV-MV, MV-LV & LV-MV
Transformers and inductors

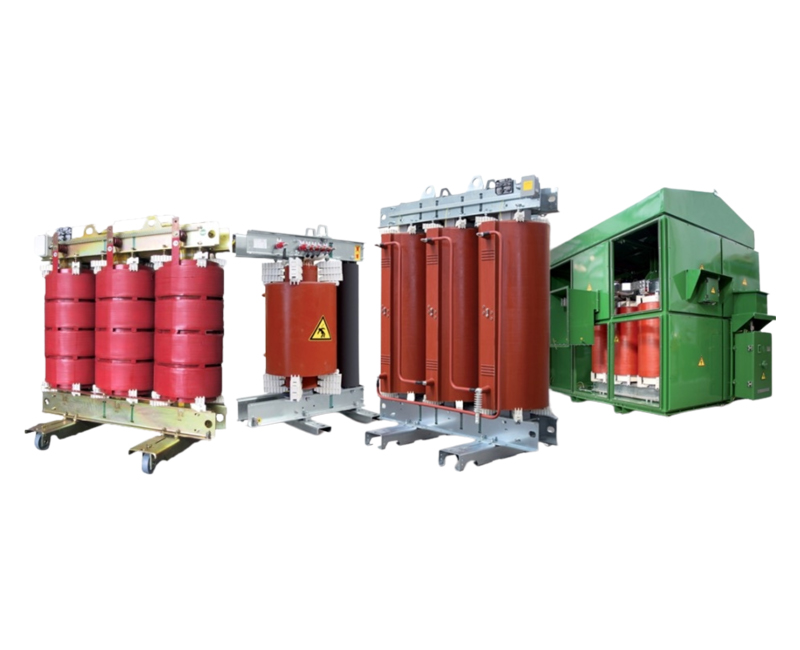

CAST RESIN & DRY TYPE TRANSFORMERS

  • From 50kVA to 30MVA
  • Insulation class up to 52 kV
  • Type: ANAN- ANAF – WFAF up to IP54 C4
  • Typologies
    - Inductors
    - Cast resin transformers
    - VPI transformers (MV/LV)
    - Special and customised transformers
  • Applications
    - Distribution
    - Power
    - Special
  • Markets
    - Europe/ USA/ Africa

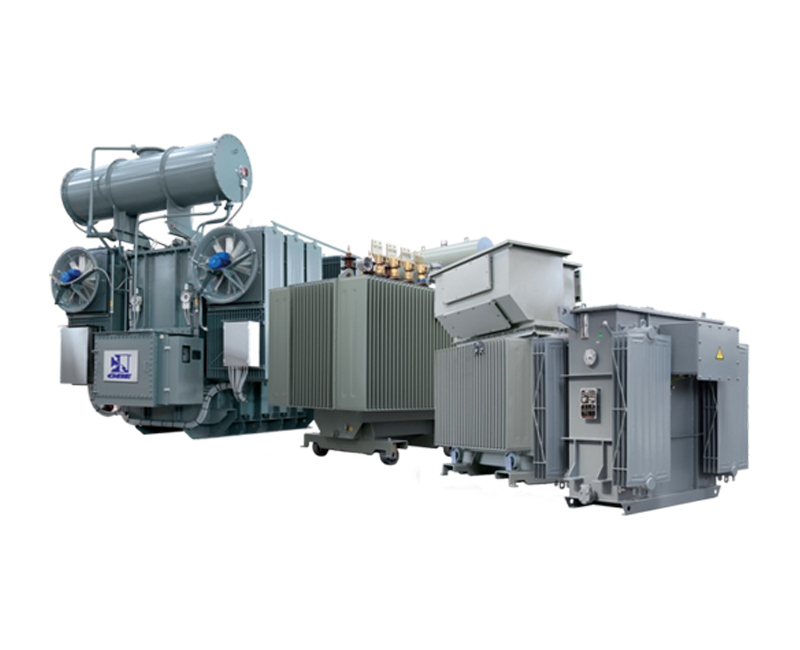

OIL FILLED TRANSFORMERS

  • From 50kVA to 50MVA
  • Insulation class up to 145 kV (BIL 650 kV)
  • Type: ONAN – ONAF – OFWF up to IP55 C5
  • Typologies
    - Hermetically sealed transformers
    - Free Breathing transformers
    - Special and customised transformers
  • Applications
    - Distribution
    - Power
    - Special
  • Markets
    - Europe/ USA/ Africa

High and Low Frequency Transformers and Inductors

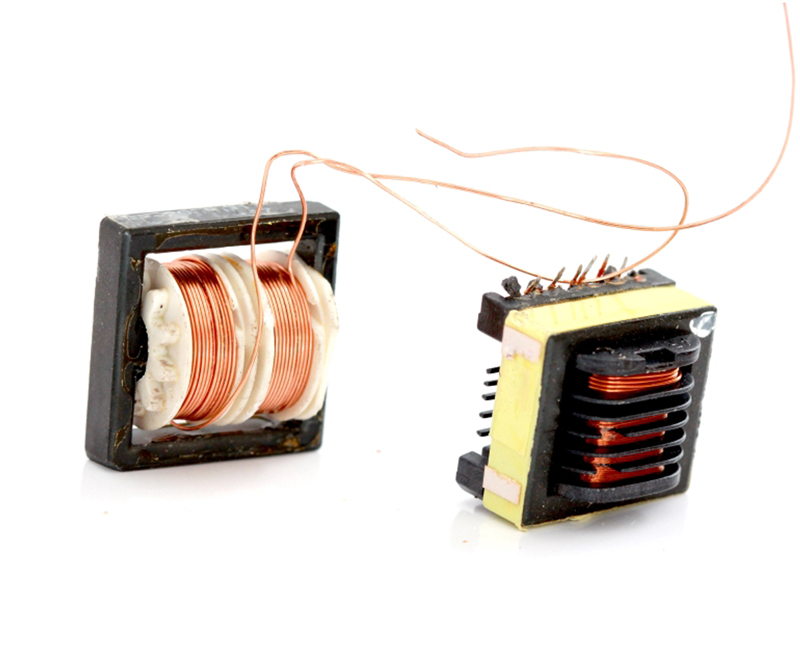

High Frequency Transformers

  • Switchmode Transformers – EFD, RM, PQ, ETD, EP & EE Series
  • Current Transformers
  • Power Pulse transformers

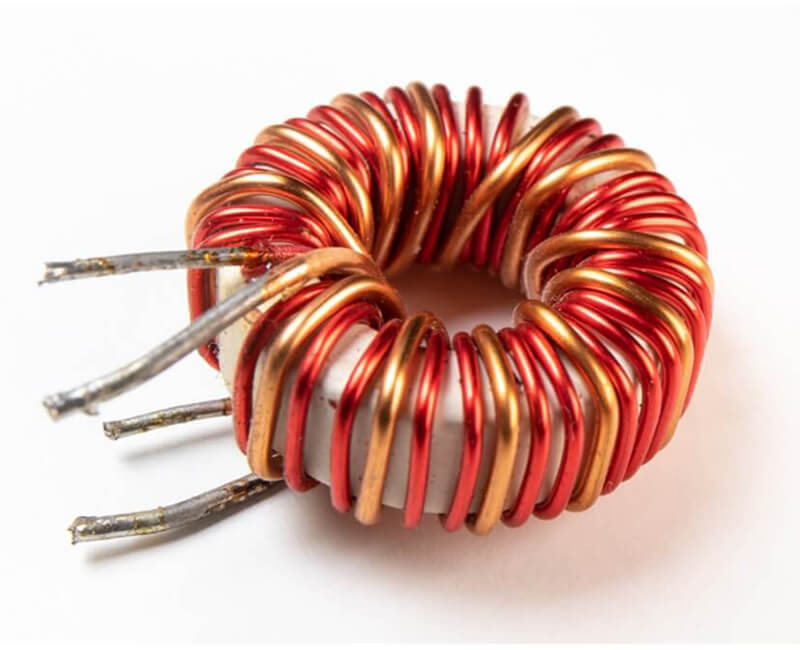

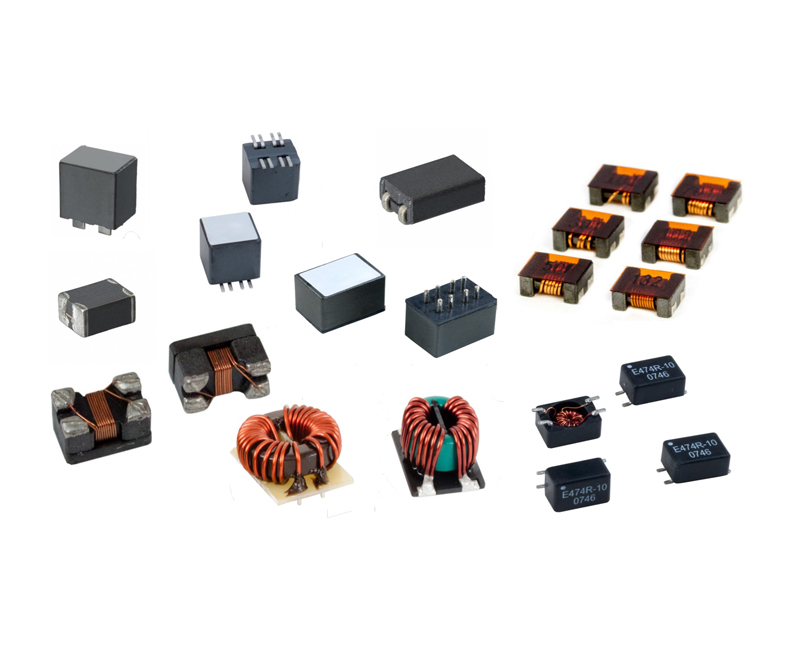

High & Low Frequency Inductors

  • High Frequency Inductors
    - PFC Inductors
    - Common Mode Chokes
    - Linear Drum Inductors
  • Low Frequency Inductors
    - EI Type
  • High Frequency WFAF boost line low voltage & reactors
